Garrett AT Pro Search Coils

The search coil is a integral part of the metal detector. It is typically circular or semi circular shape and generates a strong magnetic field which senses metallic items in the ground you search in. It is typically located at the end of a stem and is connected to the detectors control housing by a cable wound around or straight up the stem.


The size and depth put out by the magnetic field is determined by the shape and the size of the metal detector coil. Understanding the use behind the different sizes, shapes and types of search-coils will aid you with the ability to choose the best search-coil for your favorite type of metal detecting.


HOW SEARCH-COILS WORK

Search-coils mostly comprise of two sets of coiled up wires, the Transmit Coil (TX) and the Receiver Coil (RX). In Pulse Induction, their Mono coils can differ from VLF coils in the way that one coil can act as both the transmit and the receiver. Some Pulse Induction have 2 coils.


When turning the detector on, the TX coil produces a strong magnetic field in the surrounding area and will charge the ground. That is why Pulse Induction detector are more sensitive when the ground is wet.


When a metal target is within this magnetic field, it will produce a disruption in the magnetic field. The receive coil (RX) coil will notice this disruption and send an alert signal to the control box where the circuit board is.


A search-coil's magnetic field pattern is determined by the combination of the transmit coils generated field and the receiving coils pickup field.

Garrett Search Coils

Garrett Ace 150 Search Coils

Garrett GTI 2500 Search Coils

Garrett Ace 250 Search Coils

Garrett Ace 350 Search Coils

Garrett AT Gold Search Coils

Garrett ATX Search Coils

Garrett Infinium LS Search Coils

Garrett Sea Hunter Search Coils

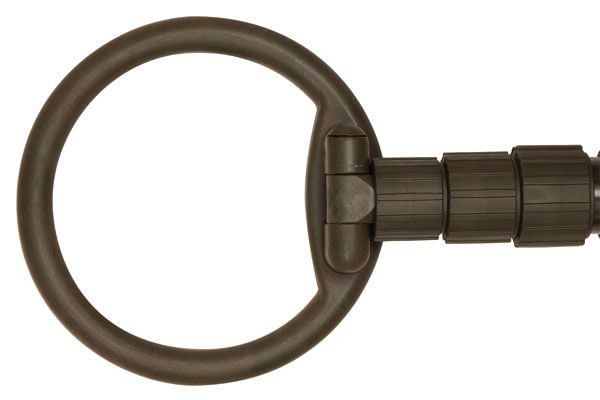

8" Mono Coil
8" Mono Coil

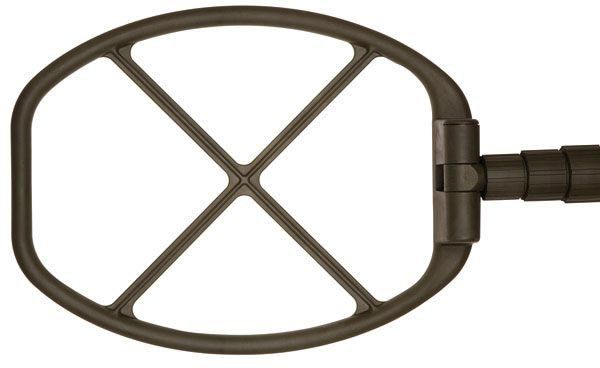

10"x14" Mono Coil
10"x14" Mono Coil

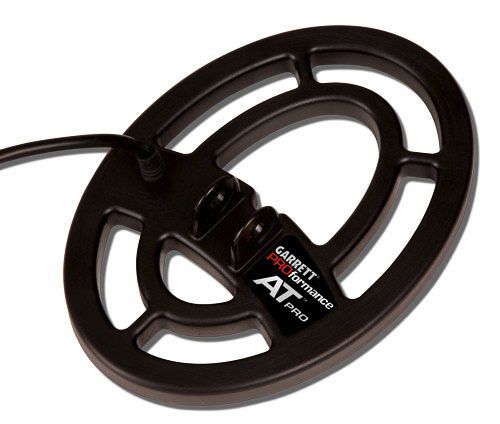

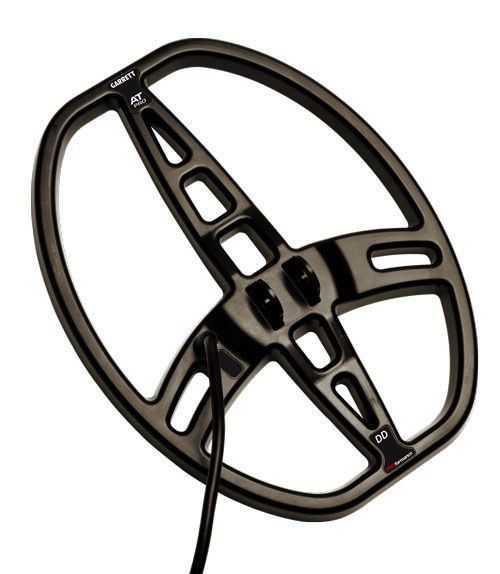

Garrett AT Pro Search Coils

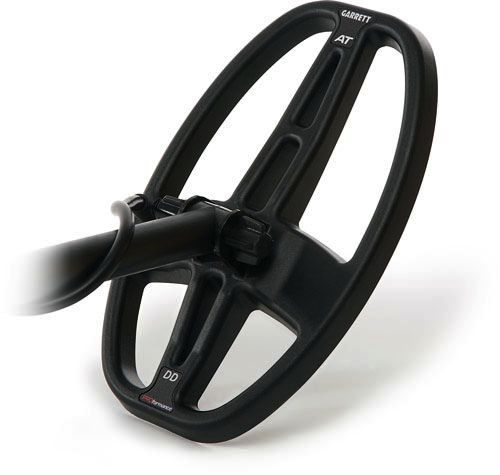

Garrett AT Gold Search Coils

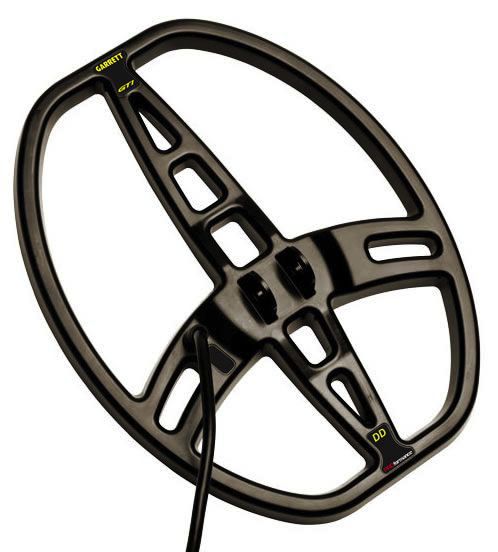

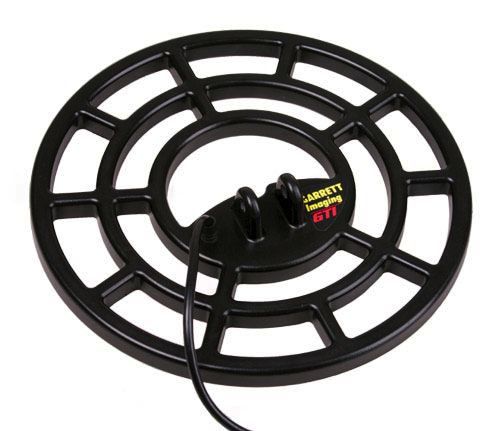

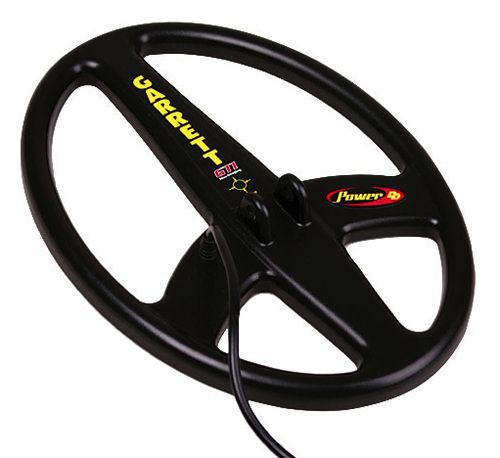

Garrett GTI 2500 Search Coils
Garrett 11 x 8.5" DD Coil

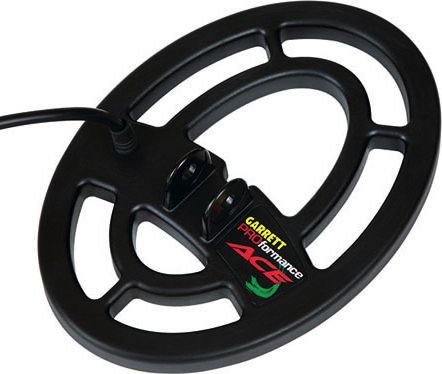

Garrett Ace 150 Search Coils

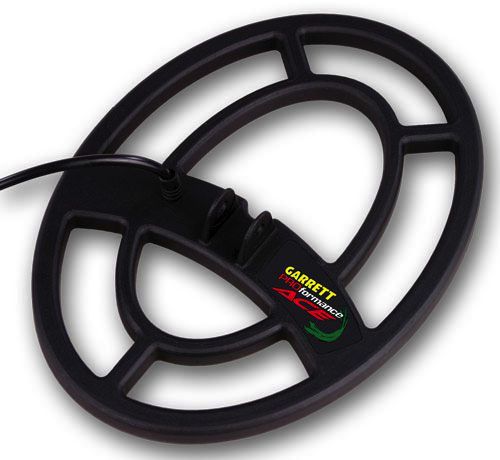

Garrett Ace 250 Search Coils
Garrett Ace 350 Search Coils

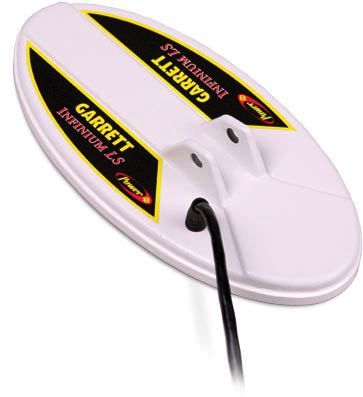

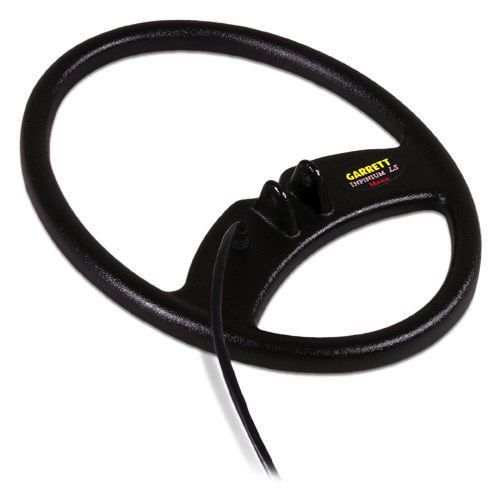

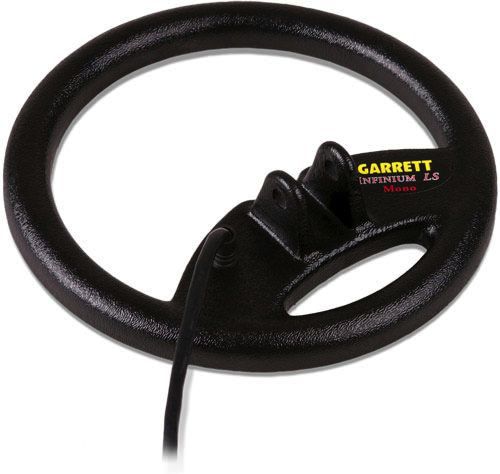

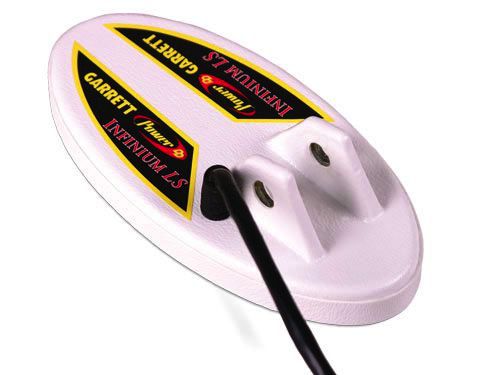

Garrett Infinium LS Search Coils

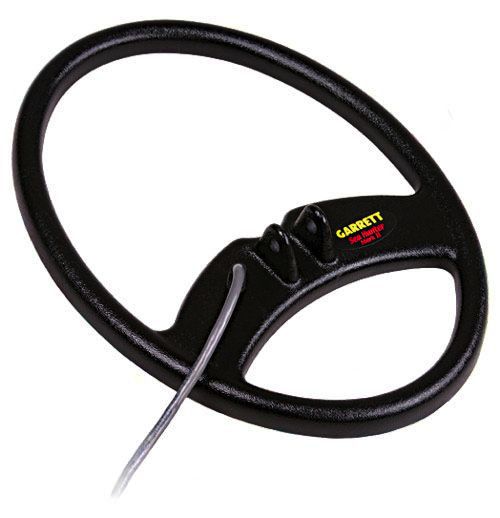

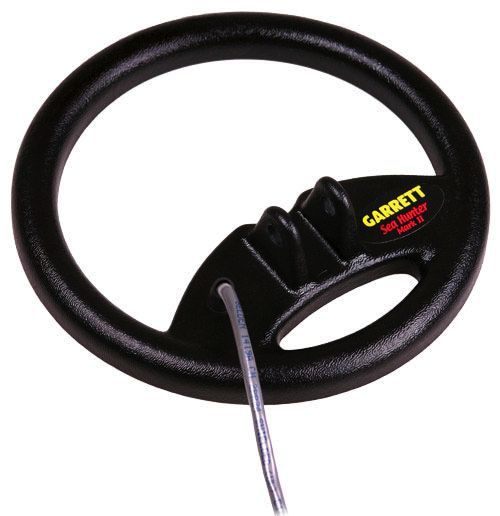

Garrett Sea Hunter Mark II Search Coils
Garrett ATX Search Coils
